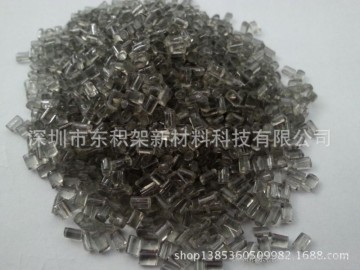

點擊圖片查看大圖
SABIC PC/PET X7300CL為低溫注塑成型PC，主要用于IMD、IML工藝
物性數據表：
| TYPICAL PROPERTIES (1) | ||||
| MECHANICAL | Value | Unit | Standard | |
| Tensile Stress, yld, Type I, 50 mm/min | 490 | kgf/cm2 | ASTM D 638 | |
| Tensile Stress, brk, Type I, 50 mm/min | 530 | kgf/cm2 | ASTM D 638 | |
| Tensile Strain, yld, Type I, 50 mm/min | 5 | % | ASTM D 638 | |
| Tensile Strain, brk, Type I, 50 mm/min | 150 | % | ASTM D 638 | |
| Tensile Modulus, 50 mm/min | 18700 | kgf/cm2 | ASTM D 638 | |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 840 | kgf/cm2 | ASTM D 790 | |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 19700 | kgf/cm2 | ASTM D 790 | |
| Tensile Stress, yield, 50 mm/min | 55 | MPa | ISO 527 | |
| Tensile Stress, break, 50 mm/min | 55 | MPa | ISO 527 | |
| Tensile Strain, yield, 50 mm/min | 5 | % | ISO 527 | |
| Tensile Strain, break, 50 mm/min | >150 | % | ISO 527 | |
| Tensile Modulus, 1 mm/min | 1900 | MPa | ISO 527 | |
| Flexural Stress, break, 2 mm/min | 71 | MPa | ISO 178 | |
| Flexural Modulus, 2 mm/min | 2000 | MPa | ISO 178 | |
| IMPACT | Value | Unit | Standard | |
| Izod Impact, notched, 23°C | 67 | cm-kgf/cm | ASTM D 256 | |
| Instrumented Impact Total Energy, 23°C | 968 | cm-kgf | ASTM D 3763 | |
| Izod Impact, notched 80*10*4 +23°C | 9 | kJ/m2 | ISO 180/1A | |
| THERMAL | Value | Unit | Standard | |
| Vicat Softening Temp, Rate B/50 | 108 | °C | ASTM D 1525 | |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 102 | °C | ASTM D 648 | |
| HDT, 1.82 MPa, 3.2mm, unannealed | 88 | °C | ASTM D 648 | |
| CTE, -40°C to 40°C, flow | 1.15E-04 | 1/°C | ASTM E 831 | |
| CTE, -40°C to 40°C, xflow | 1.05E-04 | 1/°C | ASTM E 831 | |
| CTE, 23°C to 60°C, flow | 8.5E-05 | 1/°C | ISO 11359-2 | |
| CTE, 23°C to 60°C, xflow | 8.5E-05 | 1/°C | ISO 11359-2 | |
| Vicat Softening Temp, Rate B/120 | 106 | °C | ISO 306 | |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 90 | °C | ISO 75/Ae | |
| PHYSICAL | Value | Unit | Standard | |
| Specific Gravity | 1.2 | - | ASTM D 792 | |
| Mold Shrinkage, flow, 3.2 mm (5) | 0.4 - 0.8 | % | SABIC Method | |
| Mold Shrinkage, xflow, 3.2 mm (5) | 0.5 - 0.7 | % | SABIC Method | |
| Melt Flow Rate, 265°C/2.16kgf | 21 | g/10 min | ASTM D 1238 | |
| Density | 1.18 | g/cm3 | ISO 1183 | |
| Melt Volume Rate, MVR at 265°C/2.16 kg | 21 | cm3/10 min | ISO 1133 | |
| OPTICAL | Value | Unit | Standard | |
| Light Transmission, 2.54 mm | 88 | % | ASTM D 1003 | |
| Haze, 2.54 mm | 2 | % | ASTM D 1003 | |
注塑參數：
Parameter
Injection Molding Value Unit
Drying Temperature 80 - 95 °C
Drying Time 3 - 5 hrs
Drying Time (Cumulative) 8 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 250 - 270 °C
Nozzle Temperature 250 - 270 °C
Front - Zone 3 Temperature 250 - 270 °C
Middle - Zone 2 Temperature 245 - 265 °C
Rear - Zone 1 Temperature 240 - 250 °C
Mold Temperature 45 - 60 °C
Back Pressure 0.2 - 0.5 MPa
Screw Speed 20 - 100 rpm
Shot to Cylinder Size 40 - 80 %
Vent Depth 0.013 - 0.02 mm
具體信息，歡迎來電咨詢！
東積架新材料科技不僅是專業的熱塑性彈性體及工程材料原料供應商，，亦注重技術支持及全方位的解決方案，
提供從設計選材、模具設計、成型加工等系列幫助，亦可為客戶量身定制各特殊性能之材料，
進而協助客戶提高產品竟?fàn)幜?
歡迎來電咨詢！
